ARE YOU SAFE?

Would you know immediately if a fire was to start anywhere in your property? Within minutes a small fire can grow to sufficient size to block an exit route and prevent evacuation.

Legislation now states that 99% of commercial buildings and offices should have a fire detection system or at minimum, some means of effecting a manual evacuation warning procedure (see below). Even at home, an early warning system can be the difference between life and death...

We can even install smoke detectors in your home linked to your burglar alarm to offer 24 hour protection regardless of the system being set, this system can also be linked to the Fire Service giving an automatic response.

We offer a full 24 hour back-up service, monitoring and annual maintenance program.

DETECTION

We can supply and install all sorts of equipment from a complete system to just a replacement break-glass. We provide detection, to suit all environments. Optical or Ionisation Smoke, Heat, Rate of Rise, Beam detectors, etc.

We can Test, Service and Repair your systems.

Please call 01454 618444 or e-mail info@bs1ltd.co.uk for more information or to arrange an appointment.


There are many types of fire alarm systems each suited to different building types and applications. A fire alarm system can vary dramatically in both price and complexity, from a single panel with a detector and sounder in a small comercial property to an addressable fire alarm system in a multi-occupancy building. As can be seen from this example these systems have to protect both buildings and occupants.

The categories of fire alarm systems are L if they are designed to protect life, P to protect buildings and M if they are manual systems.

M Type Fire Alarm System



Manual systems, these may be purely manual or manual electric, the latter may have call points and sounders. They rely on the occupants of the building discovering the fire and acting to warn others by operating the system. Such systems form the basic requirement for places of employment with no sleeping risk.cannot be covered by any other category.

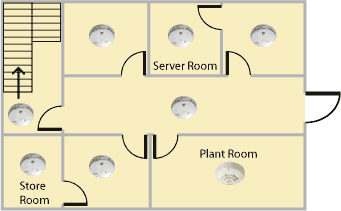

P1 Type Fire Alarm System

The system is installed throughout the building - the objective being to call the fire brigade as early as possible to ensure that any damage caused by fire is minimised. Small low risk areas can be excepted, such as toilets and cupboards less than 1m².

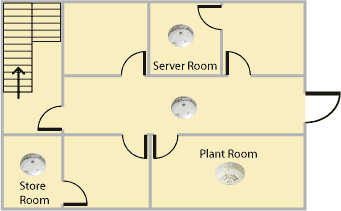

P2 Type Fire Alarm System

Detection should be provided in parts of the building where the risk of ignition in high and/or the contents are particularly valuable. Category 2 systems provide fire detection in specified parts of the building where there is either high risk or where business disruption must be minimised.

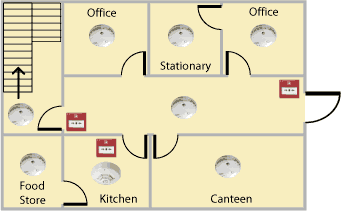

L1 Type Fire Alarm System

A category L1 system is designed for the protection of life and which has automatic detectors installed throughout all areas of the building (including roof spaces and voids)with the aim of providing the earliest possible warning. A Category L1 system is likely to be appropriate for the majority of residential care premises. In practice detectors should be placed in nearly all spaces and voids. With category 1 systems, the whole of a building is covered apart from minor exceptions.

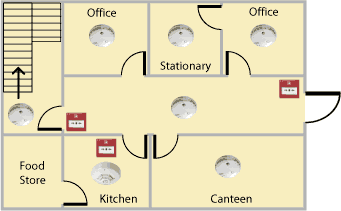

L2 Type Fire Alarm System
A category L2 system designed for the protection of life and which has automatic detectors installed in escape routes, rooms adjoining escape routes and high hazard rooms. In a medium sized premises (sleeping no more than ten residents) a category L2 system is ideal. These fire alarm systems are identical to an L3 system but with additional detection in an area where there is a high chance of ignition e.g. kitchen) or where the risk to people is particularly increased (e.g. sleeping risk).



L3 Type Fire Alarm System
This category is designed to give early warning to everyone. Detectors should be placed in all escape routes and all rooms that open onto escape routes. Category 3 systems provide more extensive cover than category 4. The objective is to warn the occupants of the building early enough to ensure that all are able to exit the building before escape routes become impassable.

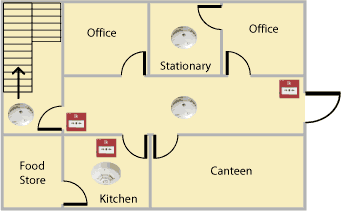

L4 Type Fire Alarm System
Category 4 systems cover escape routes and circulation areas only. Therefore, detectors will be placed in escape routes, although this may not be suitable depending on the risk assessment or if the size and complexity of a building is increased. Detectors might be sited in other areas of the building, but the objective is to protect the escape route.

L5 Type Fire Alarm System

This is the ‘all other situations’ category e.g. computer rooms which may be protected with an extinguishing system triggered by automatic detection. Category 5 systems are the ‘custom’ category and relate to some special requirement that cannot be covered by any other category.
